Other grades of this product :
| 56,60:2'',3''][5,6]fullerene-C60-Ih Basic information | | Uses |
| Product Name: | 56,60:2'',3''][5,6]fullerene-C60-Ih | | Synonyms: | 1',1'',4',4''-Tetrahydrodi[1,4]methanonaphthaleno[1,2:2',3';C60 derivative,indene-C60 bisadduct;ICBA;1',1'',4',4''-Tetrahydrodi[1,4]methanonaphthaleno[1,2:2',3':56,60:2'',3''][5,6]fullerene-C60-Ih;1′,1′′,4′,4′′-Tetrahydro-di[1,4]methanonaphthaleno[1,2:2′,3′,56,60:2′′,3′′][5,6]fullerene-C60;ICBA 99% (HPLC);ICBA 99.9% (HPLC);C60 derivative, indene-C60 bisadduct, mixture of isomers | | CAS: | 1207461-57-1 | | MF: | C78H16 | | MW: | 952.99 | | EINECS: | | Product Categories: | Device Materials | | Mol File: | 1207461-57-1.mol |
| 56,60:2'',3''][5,6]fullerene-C60-Ih Chemical Properties |
| Melting point | 253-260°C | | density | 2.63 | | form | powder to crystal | | color | Black |
| Hazard Codes | Xi | | Risk Statements | 36/37/38 | | Safety Statements | 26 | | WGK Germany | 3 | | HS Code | 38019090 |
| 56,60:2'',3''][5,6]fullerene-C60-Ih Usage And Synthesis |
| Uses | 1’,1’’,4’,4’’-tetrahydro-di[1,4]methanonaphthaleno[5,6]fullerene-C60 ICBA or IC60BA
A fullerene designed to increase the open circuit of P3HT solar cells by around 0.17 eV due to the higher lying LUMO level in order to significantly increase the power conversion efficiency.
| | Description | 1’,1’’,4’,4’’-tetrahydro-di[1,4]methanonaphthaleno[5,6]fullerene-C60 ICBA or IC60BA. A fullerene designed to increase the open circuit of P3HT solar cells by around 0.17 eV due to the higher lying LUMO level in order to significantly increase the power conversion efficiency . | | Uses | A ternary bulk heterojunction system (BHJ) may be fabricated with ICBA/ low band gap polymer, for IR sensitized organic solar cells. 1-3ICBA/thiazolo-thiazolo donor polymer blend may be used to enhance the charge generation in BHJ solar cells. | | General Description | ICBA is a C60 derivative that can be synthesized from C60 and indene. It is an acceptor material with shallow lowest occupied molecular orbital(LUMO) which can be used to enhance the performance of polymeric solar cells(PSCs). |
| 56,60:2'',3''][5,6]fullerene-C60-Ih Preparation Products And Raw materials |
|

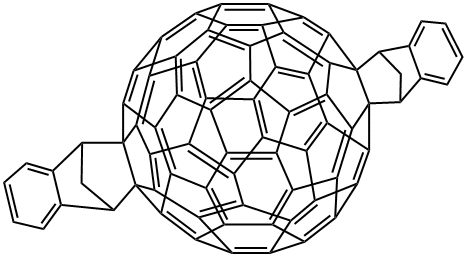

![56,60:2'',3''][5,6]fullerene-C60-Ih](/img/1207461-57-1.jpg "56,60:2'',3''][5,6]fullerene-C60-Ih")
