CC-00133 chloride removal adsorbent is an outstanding adsorbent most commonly used in adsorbing hydrogen chloride from reformer hydrogen off-gases, synthesis-gas,natural gas, naphtha, and light liquid hydrocarbons in wide-temperature range applications(300℃-400℃).its chloride pick-up capacity rises with operating temperature.
CC-00133 has been successfully used in a lot of industry plants of PETROCHINA and SINOPEC.
Physical and chemical properties:
item | target | item | target |

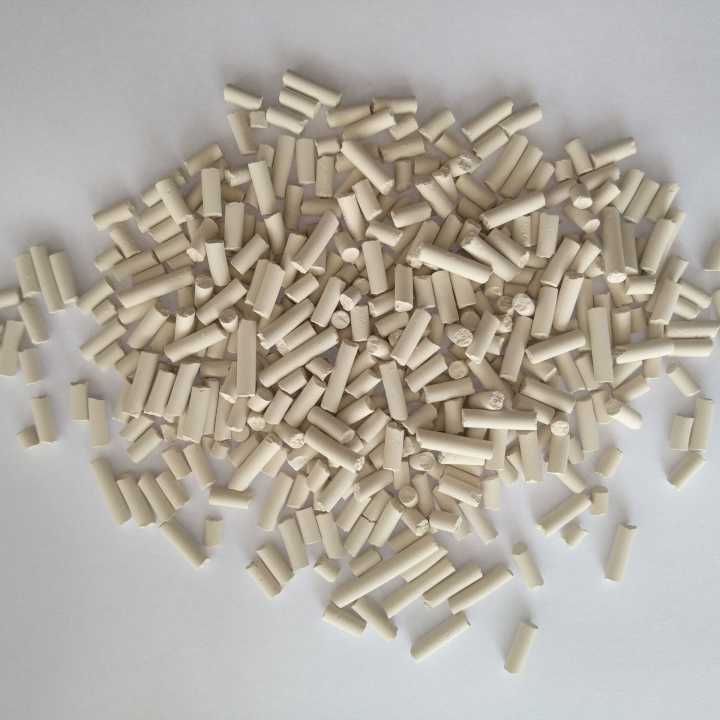

Appearance | white or grey-white extrudates | Particle size, mm | Ф4×5-20 |
Packing density, kg/l | 0.75-0.85 | Crushing strength, N/cm | Min60 |
Chemical composition | alkaline-earth metal and promoters | Chloride capacity, | 300℃, min50wt%HC |
normal operating conditions:
Process parameters | pressure ,Mpa | temperature,℃ | Space velocity,hr-1 |
0.1-10 | 300℃-400℃ | 3.0-8.0(L),500-3000(G) | |
Raw material | HCI content, 1000 ppm | ||
processed products | HCI content, max 1 ppm | ||
