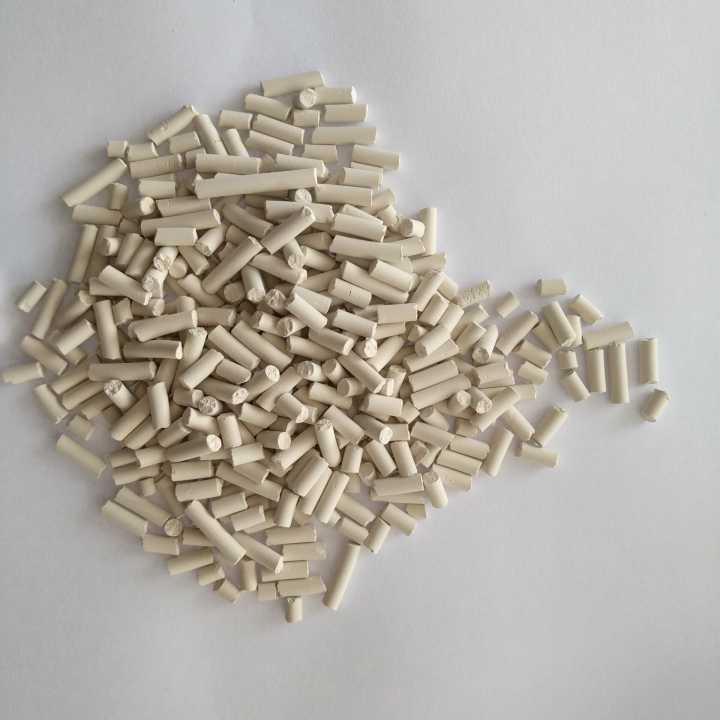

CC-00132 chloride removal adsorbent is an outstanding adsorbent most commonly used in adsorbing hydrogen chloride from reformer hydrogen off-gases, natural gas, naphtha, and light liquid hydrocarbons in low-temperature range applications.
It can provide more than 30% chloride pick-up capacity at 30℃ ,and its chloride pick-up capacity rises with operating temperature in the range of -5℃ to 200℃. CC-00132 has been successfully used in a lot of industry units of PETROCHINA and SINOPEC.
Physical and chemical properties:
| item | target |
Appearance | white |
Packing density, kg/l | 0.75-0.85(white),1.0-1.1(brown) |
Chemical composition | CaO plus promoters |
Crushing strength, N/cm | min50 |
Chloride pick-up capacity, | min 30wt%HCl(40℃) |
normal operating conditions:
Process parameters | pressure ,Mpa | temperature,℃ | Space velocity,hr-1 |
0.1-10 | -5 to 200℃ | 3.0-8.0(L),500-3000(G) | |
Raw material | HCl content, 1000 ppm | ||
processed products | HCl content, max 0.1 ppm | ||
Packing: iron drums innerlining double-layer plastic bags.
