CC-00117 dimethyl ether catalyst
CC-00117 catalyst is supported by γ-Al2O3, adding a certain amount of preparation of heteropoly acid and promoter to improve its activity, selectivity and heat resistance.
CC-00117 catalyst is suitable for gas phase methanol dehydration to produce dimethyl ether.The catalyst can be used to prepare dimethyl ether by using fine methanol or crude methanol (methanol synthesis process without distillation separation of products) as raw material.The industrial production shows that the catalyst has the advantages of good activity, high selectivity, small bulk density, wide temperature adaptation range, good thermal stability, long service life, etc., it is a new and efficient catalyst for methanol production of two methyl ether.
Physical and chemical index:

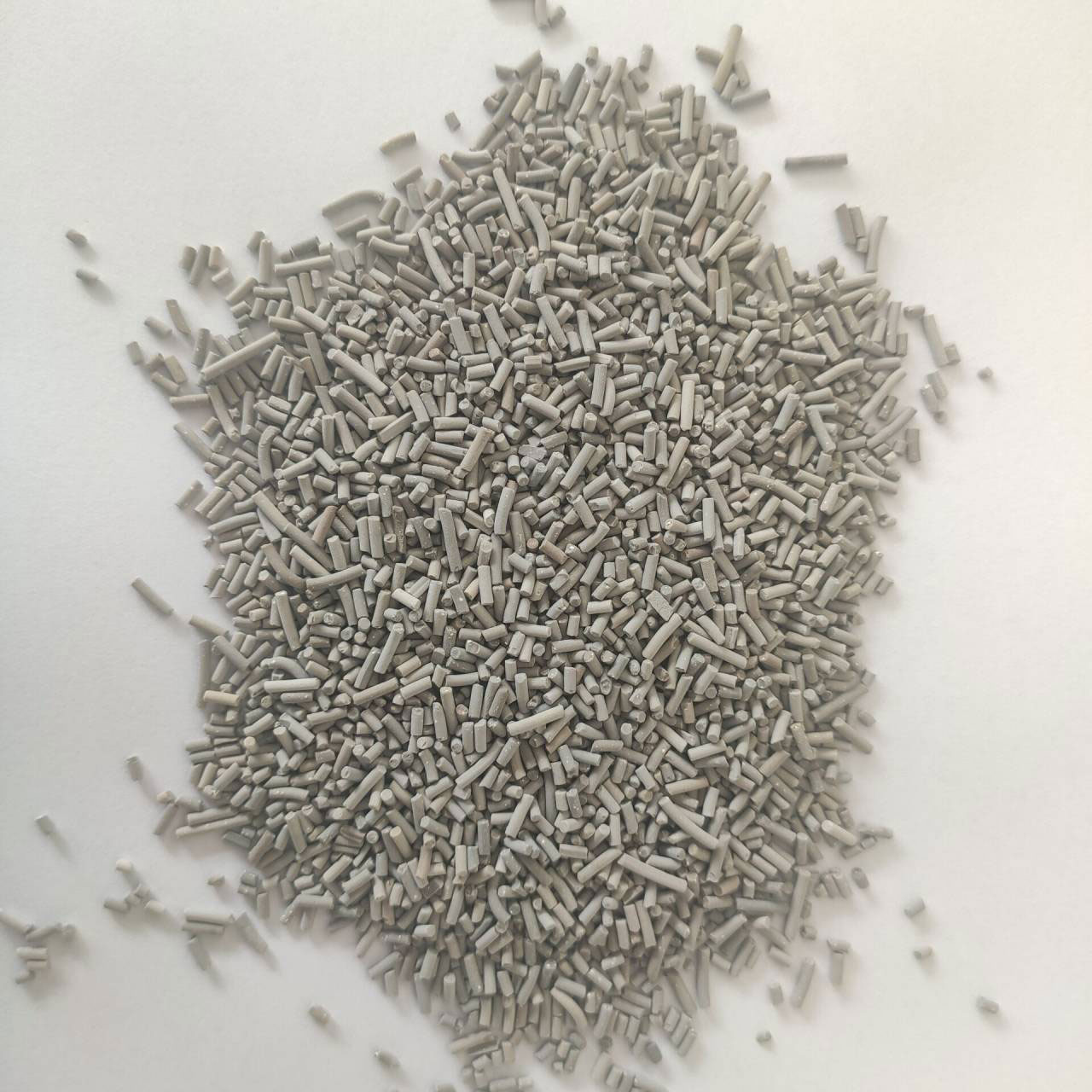

Appearance | White or light yellow extrudate |
chemical composition | Main components is Al2O3 |
size | Diameteφ3~4mm ,long:3~20mm |
Bulk density | 0.45~0.50 kg/L |
specific surface area | ≥250㎡/g |
Average crushing strength | radial≥80N/cm |
abrasion | ≤5% |
qualification
Methanol conversion rate | ≥82% |
dimethyl ether selectivity | ≥99.5% |
process conditions
temperature | 240℃~400℃ |
pressure | 0.1~1.2 MPa |
The liquid space velocity | 1~2 h-1 |
