Isomerization catalyst
Isomerization catalyst
Other grades of this product :

CC-00115 Isomerization catalyst



Characteristic:

CC-00115, which is a newly developed isomerization catalyst by Dalian Institute of Chemical Physics ,Chinese Academy of Sciences, takes molecular sieve and alumina as carrier containing Platinum as active components and promoter

One main characteristic is the acid component. Because of the  molecular sieves composed of various kind of molecular sieves, It has the advantages as large surface area, high stability, good isomeric selectivity, long service life etc.

The other characteristic is the advanced dipping technique and perfect dispersivity of Pt. Therefore, Platinum content level is lower than that of the similar products under the ideal performance  condition,

Physical and chemical properties



Platinum,%

0.32±0.02

Surface area, m2/g:

400

Strength, N/particle:

80

Bulk density, kg/L

0.75

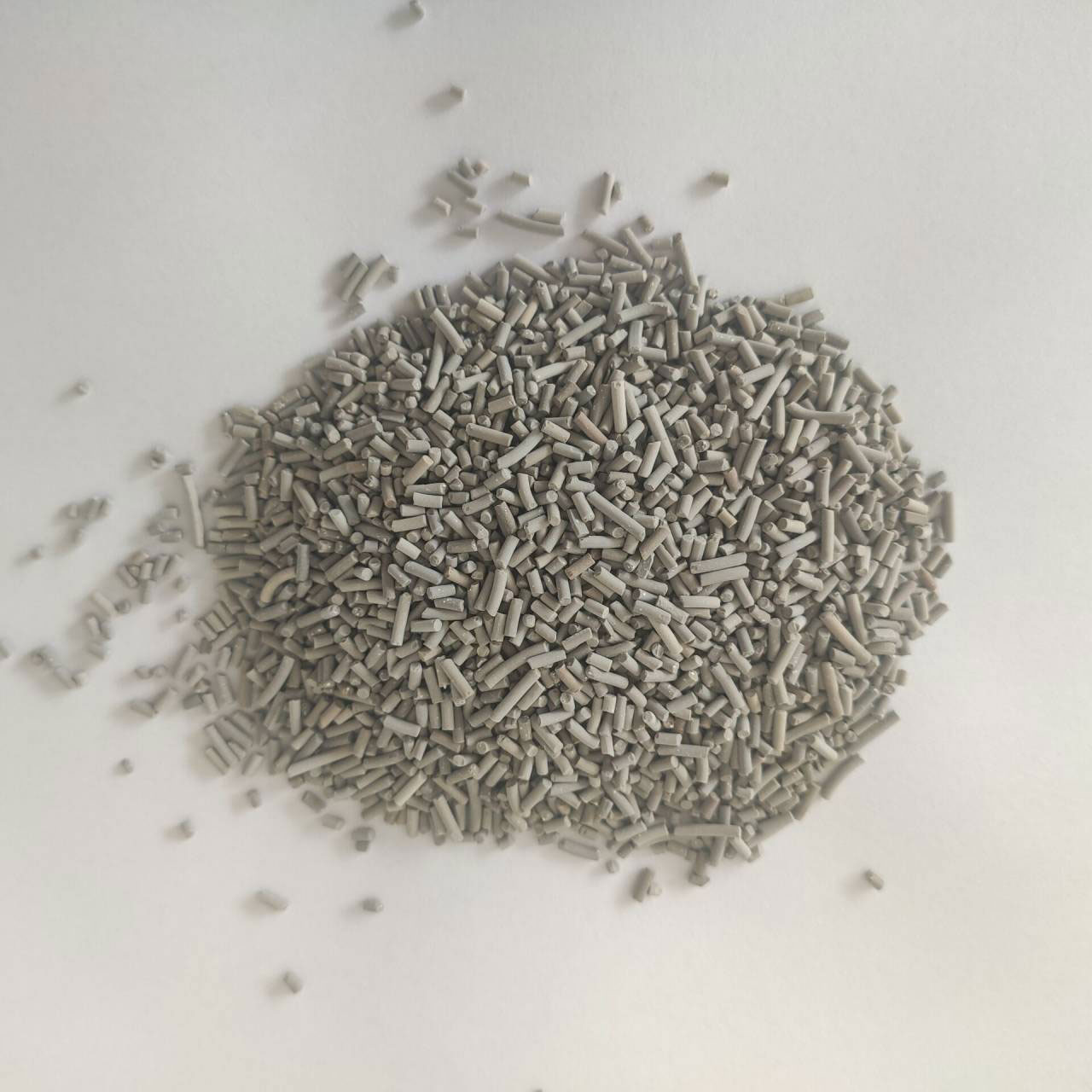

Appearance:

Cylinder

Diameter, mm:

2–2.2

Length,mm:

3-8


Process condition:

Feedstock:

C5-C6

Pressure:

1.7MPa

Temp:

250-270℃

Space velocity, h-1:

1.0

hydrogen/oil:

2.6(mol)

refinery oil :

C5 isomerization ratio >60m%

C6 isomerization ratio >80m%

Packages:Net 200L Steel drums with plastic bags, 140KGS per Drum, 4 Drums or 3 Drums on 1 Pallet.
