Coke oven gas hydrodesulfurization catalyst
Coke oven gas hydrodesulfurization catalyst
Other grades of this product :

The catalyst takes alumina as carrier, Fe and Mo as active components and adds special additives. It is mainly used for the hydrogenation of organic sulfur into hydrogen sulfide in the coke oven gas containing up to 10% carbon monoxide and also used for the hydrogenation of Olefin saturation process in the feed stock to protect subsequent catalysts. The catalyst has so high selectivity that can convert organic sulfur to hydrogen sulfide and minimize the occurrence of methanation side reaction and almost retain all the effective component of carbon monoxide, and thus the catalyst has the characteristic of stable activity, no flying temperature, easy operation.The conversion rate of thiophene is 20% higher than similar products in domestic.


Physical and chemical properties:

Index item

index

Index item

index

Appearance

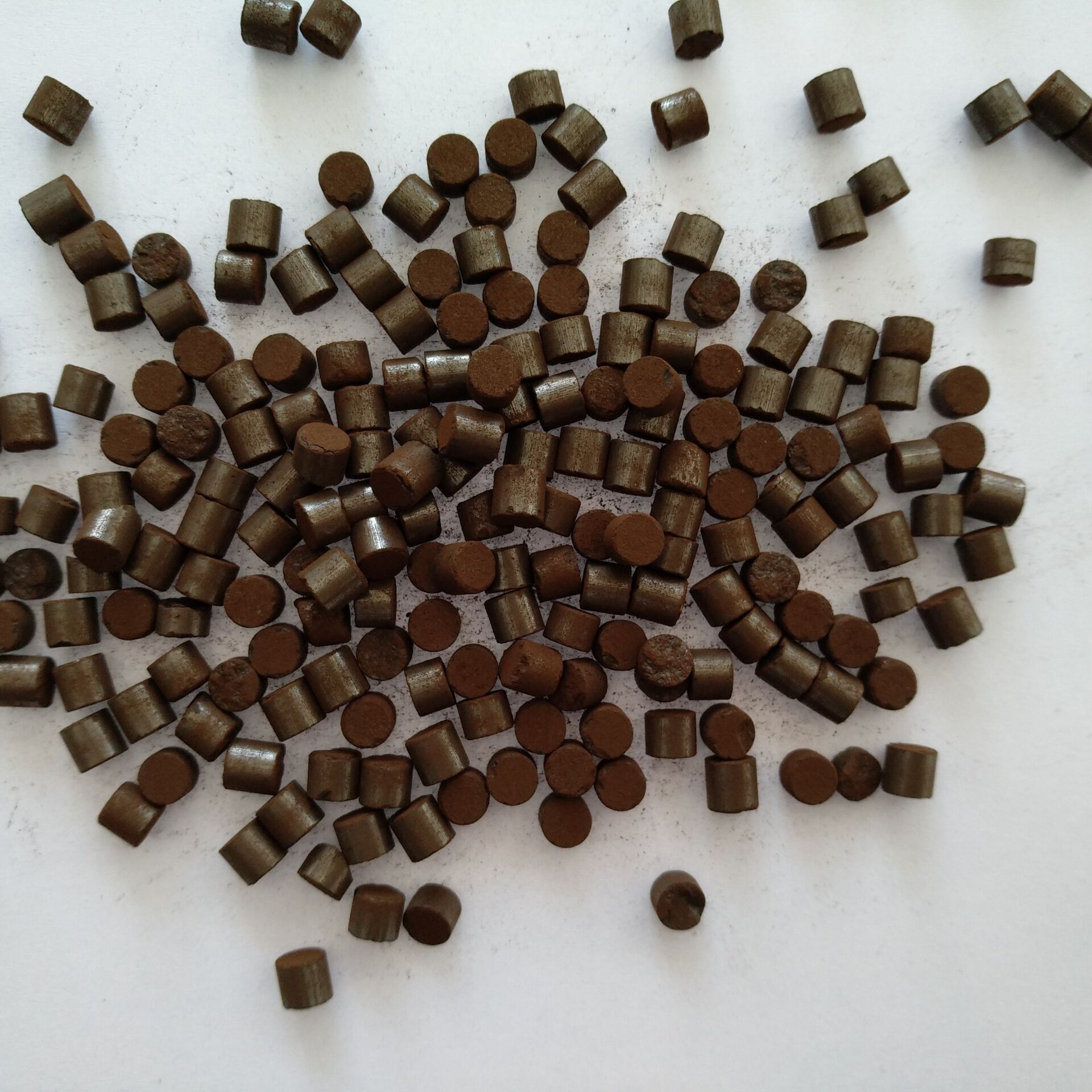

Brown tablets or extrudates

components

Mo-Fe-additives-Al2O3

Particle size,mm

Ф7×5-6 or Ф5*5-15

Bulk density,kg/L

0.75-0.90

Radial crushing strength,N/cm≥

150






Operating conditions:

Operating conditions

pressure,Mpa

Temp,℃

Space velocity, hr-1

1.6-4.0

380-420

1000

Feedstock

organic sulfur 200-300mg/Nm3

Activity

 Conversion of organic sulfur≥99%,CO loss<0.1%。



Package: drums lined with plastic bags or according to customers’ requirement.
