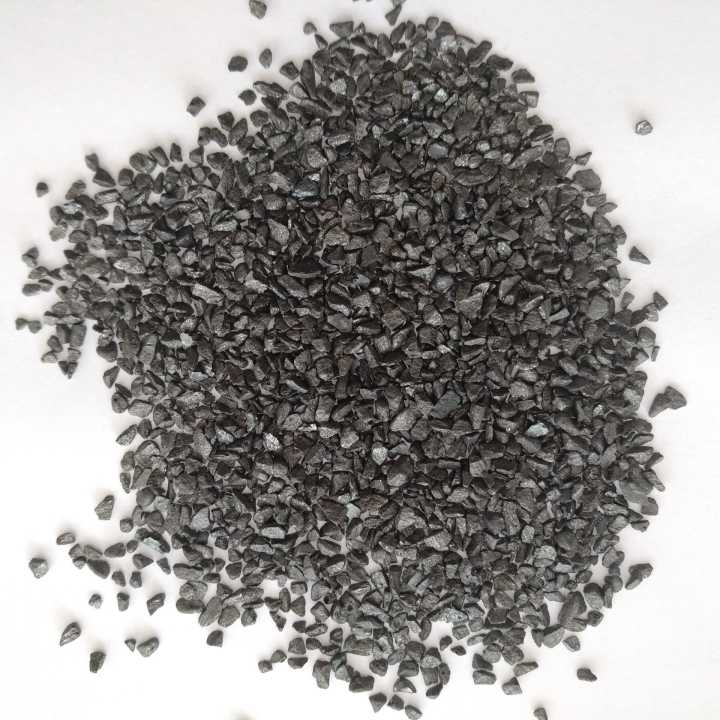

CC-00106Ammonia synthesis catalyst is mainly used in the process of production ammonia in synthesis ammonia plant, it is also used Metal processing industry and electronic industry which get nitrogen production gas from NH3.
Physical and chemical properties:
items | index |
Appearance | Amorphous particle， spheroidization rate ≥0.6 |
Color: | Black with metallic luster |
Particle size（mm） | 1.5-3.0、2.2-3.3、3.3-4.7、4.7-6.7、4.7-6.7、6.7-9.4、9.4-13.0 |
Bulk density: g/ml | 2.7-2.9 |
Chemical composition: | Fe3O4、Al2O3,CaO and K2O etc |
Porosity: | 46% |
Pore volume: ml/g | 0.13 |
Specific area :m2/g (Reduced) | 13 |
Operating conditions:
Temperature:℃ | 360-530 |
Pressure: MPa | 10-32.0 |
Space velocity: h-1 | 5000-50000 |
Activity after heating（outlet NH3）≥ | 13.5% |
Package: Steel drums lined with plastic bags
