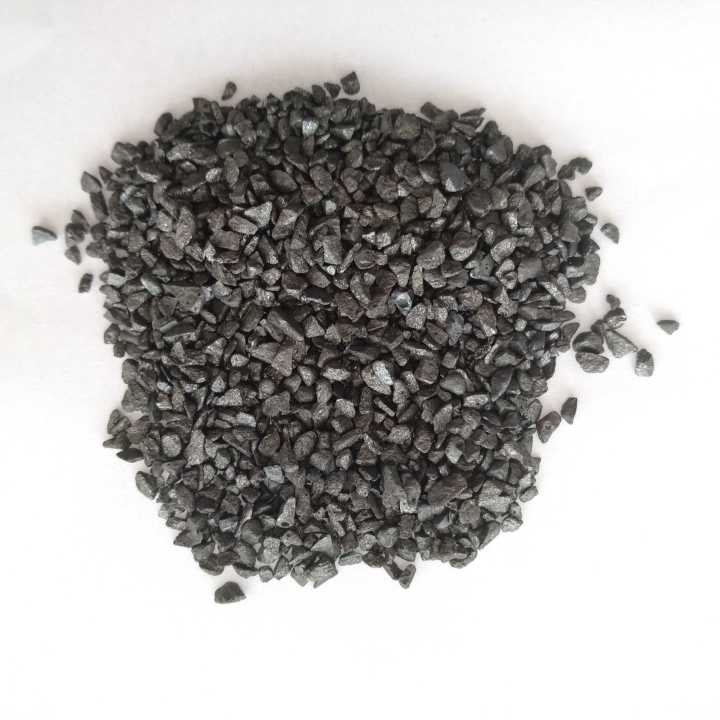

CC-000103 Ammonia synthesis catalyst is a new type of iron-cobalt double activities energy-saving catalyst. Because the catalyst contains a small amount of cobalt, it has a better character. It possesses the characteristics of easy reduction, low temperature good activity, low operating pressure and high net ammonia value.
Application: The catalyst is suitable for all kinds of high and low pressure processes, and it is also suitable for new process of isobaric synthesis, which is an energy-saving ammonia synthesis catalyst.
Physical and chemical properties:
Items | index |
Appearance | Amorphous particle |
Color | black |
Particle size:（mm） | 1.5-3.0、2.2-3.3、3.3-4.7、4.7-6.7、4.7-6.7、6.7-9.4、9.4-13.0 |
Bulk density: g/ml | 2.7-3.0 |
Chemical composition | Fe3O4,CoO、Al2O3，CaO and K2O etc |
Operating conditions:
Operating temperature ℃ | 340-500 |
Pressure: MPa | 8.0-32.0 |
Space velocity h-1 | 5000-50000 |
Activity after heating （outlet NH3） ≥ | 13.8% |
