Shift Catalyst
Shift Catalyst
Other grades of this product :

This is a product we developed jointly with Henan Provincial Chemical Institute.
Characteristics is as follows:
High activity
High strength in using
Low bulk density
Wide temperature scope for using
Extreme high ability of resistant to condensation water
Low sulfur content in catalyst' body, special time for releasing sulfur can be saved in initial start of large scale synthetic ammonia plant in which high temperature converter is connected to low temperature converter directly.
Physical properties:

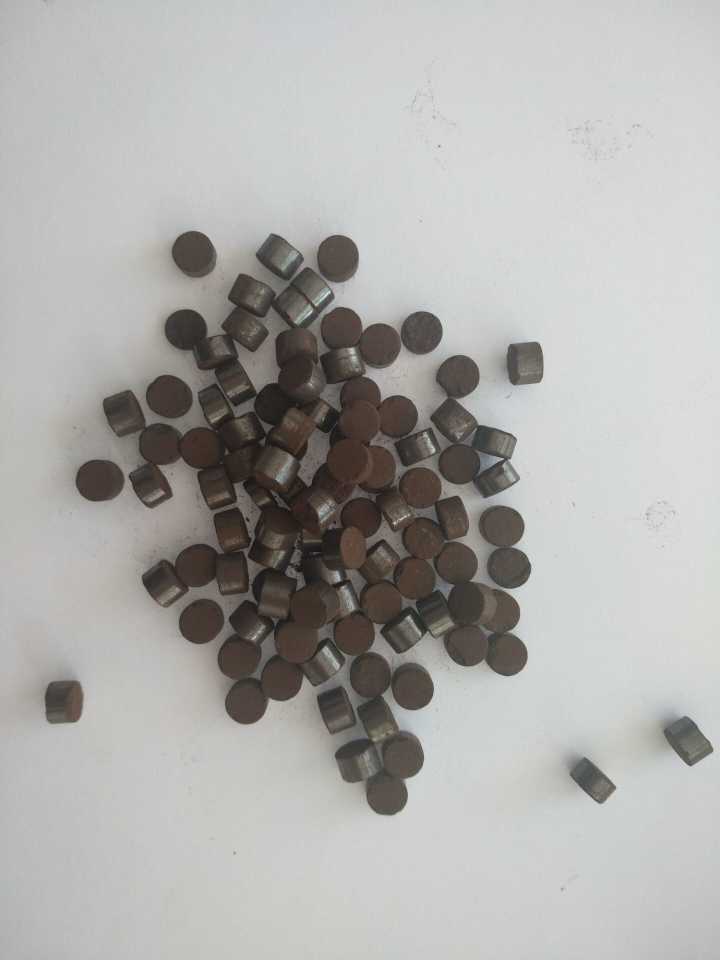

Appearance

black-grey cylinder

Diameter mm

φ9×6~8mm、Φ6×5~7mm

Bulk density

1.4~1.5 g/ml

Chemical properties: Iron oxide, chromium oxide,a small amount of CuO and other additives.

Technical properties:

Activity after heat resistant(CO converting rate),350oC,%

≥70.0

Radical strength before reduction, N/cm

≥210.0

Radical strength after reduction ,N/cm

≥210.0

Pellets' percentage of strength below 160N/cm,%

≤10.0

Friction loss,%

8.0max.

Burned loss,%

10.0max.

Sulfur in catalyst body(as S),%

0.025max.

 Packing: in 1000kg standard plastic woven bags, which is suitable for ocean freight.
