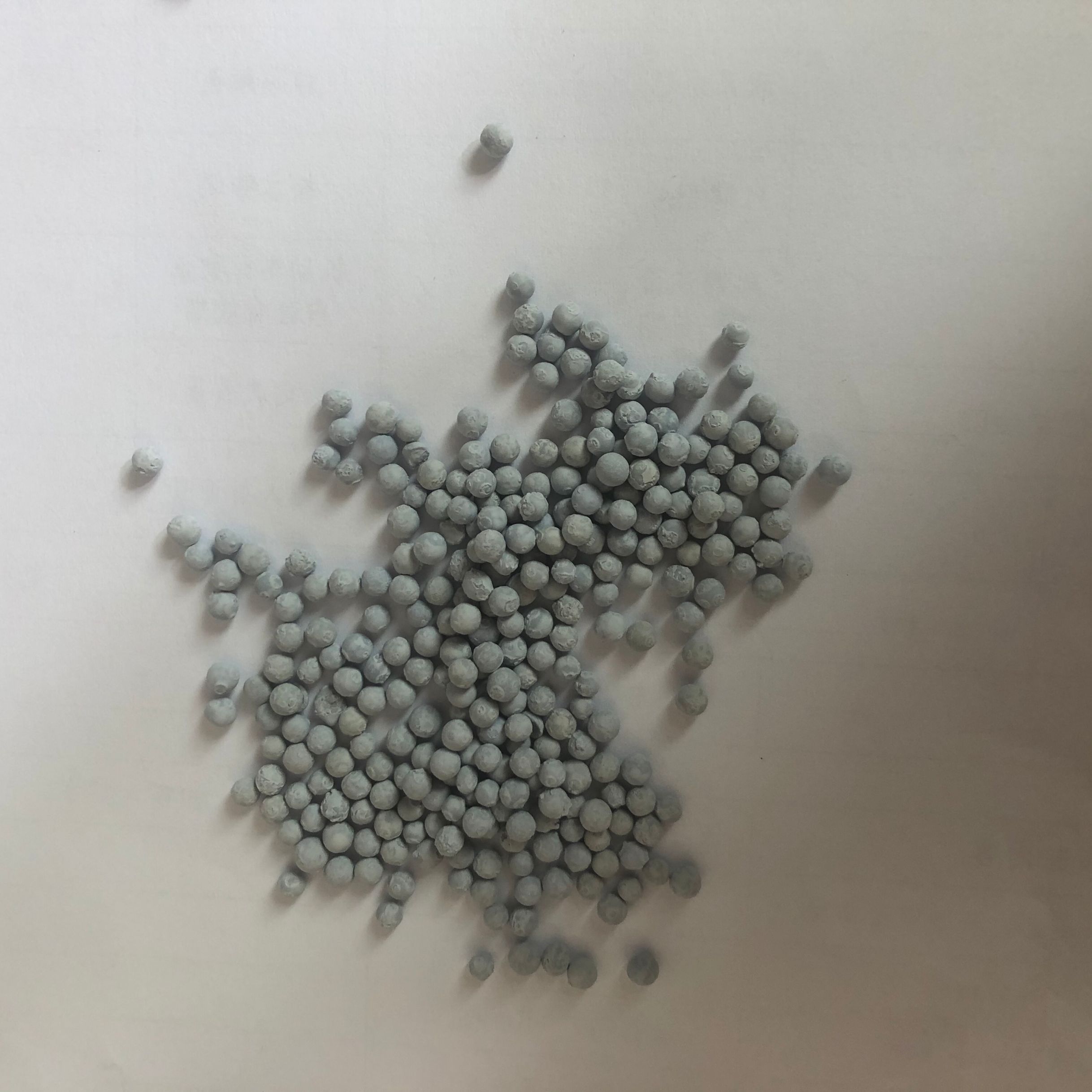

CC-00099 sour shift catalyst has been completed industrial amplification experiment. Meantime, 6000 h of industrial side line and 2 years of industrial plant landfill experiment have been completed, too . The catalyst is used in adiabatic reactor and axial-radial reactor.
Physical and chemical properties：
Item | NHT-K | NWT-I |
Appearance: | extrudates/ dentiform sphere | sphere |
Particle size :mm | 3.5-5 mm | 3.5-5 mm |
Bulk density: Kg/L | 0.82-0.89 | 0.94-0.99 |
Strength: | ≥200N/cm | ≥80 N/particle |
Surface area:m2/g | 170 | 114 |
CoO: | 3-4% | 2-4% |
MoO3 : | 8-9% | 8-9% |
K2O: | - | Some |
Promoter: | The balance | The balance |
Carrier: | Magnesium-aluminjum spinelle /Al2O3 | Magnesium-aluminjum spinelle /Al2O3 |
Operating conditions：
Item | Index |
Operating temperature，℃ | 200-500 |
Pressure，MPa | 2-8 |
Dry base space velocity ，h-1 | 1000-6000 |
steam/ gas, | 0.2-1.4 |
Sulphur content，% | ≥0.02% |
