1. Loading proposal
code | Loading area | Loading arrangement | bulk density kg/M3 | NiO % ≥ | SiO2 % ≤ | rare earth % | balance % |
HTZ112-HB | upper stage | 50% | 980 | 14.0 | 0.2 | 0.5-2.0 | Ca/Al |
HTZ112-HA | Lower stage | 50% | 980 | 14.0 | 0.2 | -- | Ca/Al |
2. Product quality standard
code | Specification | （NiO）% | activity | Crushing strength ≥ | Low strength particle percentage ≤% |
dry gas CH4(V)％，≤ | |||||

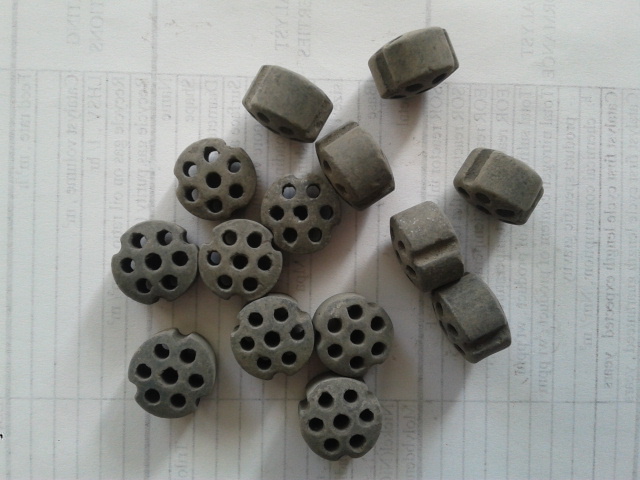

HTZ112-HB | Seven holesФ17×10 | 14.0 | 23.0 | 200 | 5.0 |
HTZ112-HA | Seven holesФ17×17 | 14.0 | 66.0 | 250 | 5.0 |
3. Process condition
Total carbon in feedstock (%) | 140 |
inlet temperature | 400～700℃ |
outlet temperature | 600～950℃ |
pressure | normal pressure～5.0MPa |
space velocity | ≤2350h-1 |
water /carbon | 2.5～5.0 |
sulfur content in inlet | ≤0.5ppm |
4. Performance condition ( in normal process condition)
CH4 content of SOR in outlet | ≤11.42%（v） |
CH4 content of EOR in outlet | ≤13.68%（v） |
SOR pressure drop | ≤2.5bar |
EOR pressure drop | ≤3.0bar |
Service life | ≥3 year |
5.property guarantee)
Service life | 3 year |
CH4 content of Converter in outlet | 13.68% (V) |
Pressure drop £ | 3.0 bar |
