CC-00088 Methanol synthesis catalyst
The catalyst takes alumina as carrier,copper as the active component and contains special additives. Properties of the catalyst were greatly enhanced after a remarkable improvement on its preparation process. As the result, the catalyst is featured by higher activity, especially the low temperature activity,higher space-time yield and CO conversion, better thermal stability, longer service life, better selectivity, higher methanol concentration in the crude methanol, less organic by-products , wider range of operation conditions, easier reduction and operation, higher strength and less catalyst powder, less pressure drop,which can improve the output of methanol plant.
Application: It is widely used in methanol plants with various processes, including Lurgi and ICI medium and low pressure processes. Its activity level has reached the most advanced level of foreign similar products.
Physical and chemical properties:
Item | index |

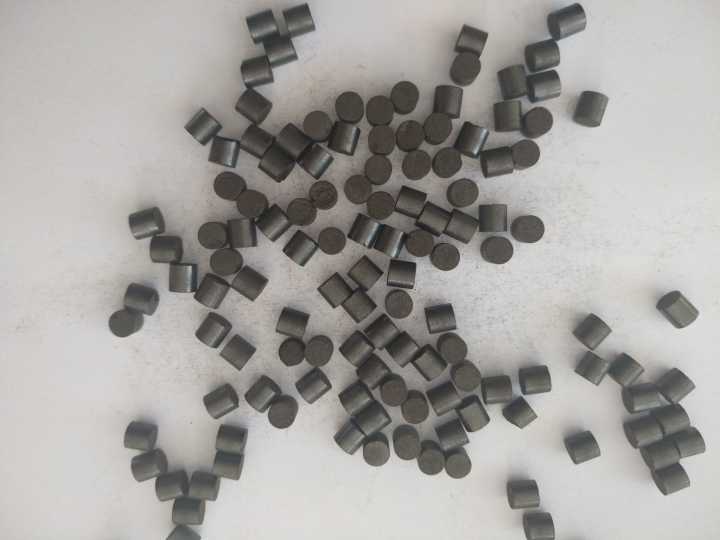

Appearance | black cylinder |
Particle size,mm | ∮5×(4-5) |
Bulk density,kg/L | 1.30-1.5 |
Radial crushing strength,,N/cm | ≥180 |
Surface area,m2/g | 70-90 |
Operating conditions:
Process conditions | pressure,Mpa | temperature,℃ | Space velocity,h-1 |
10~25 | 220~270 | 10000-20000 |
Package: drums lined with plastic bags or according to customers’ requirement.
