CC-00071 Ammonia decomposition catalyst
(Heat- Resistance)
CC-00071 Ammonia decomposition catalyst is used for purification in coke oven gas, ammonia decomposition furnace of recovery equipment, and CLAUSE furnace. It makes the NH3, HCN and other noxious gas into N2, H2, CO3, which avoids the environment pollution, and at the same time recovers sulfur. CC-00071 with MgO as carrier, and covering activity component, can stably work in high temperature. Its refractoriness can reach to 1700℃,with high catalytic activity, high- strength , anti-coking ,and anti-poisoning characteristic. It can replace G-117 ammonia catalyst of Germany
Main physical and chemical properties:
Item | Unit | Index |
Appearance |

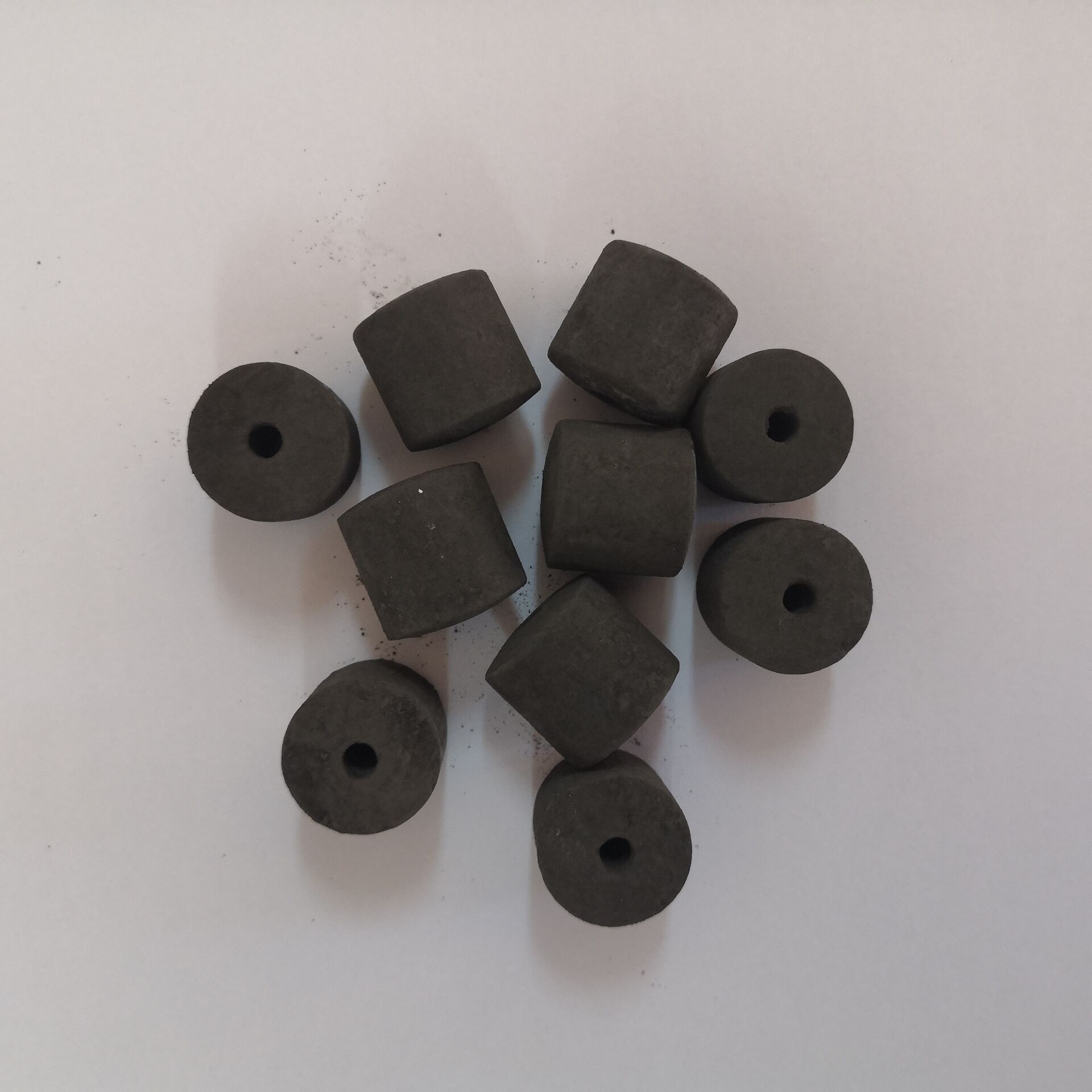

| gray black cylinder with hole |
size | mm | outer diameter 20±2,height 20±2 ,pore diameter3-5 |
Nickel content | % | ≥6 |
Crushing strength | N/particle | ≥1000 |
Normal operating conditions:
Operating temperature ℃ | Operating pressure | Gas space velocity h-1 | NH3decomposition rate (%) |
1000-1100 | Normal pressure | 1000-3000 | ≥99 |
