methanation catalyst
methanation catalyst
Other grades of this product :

CC-00063 Methanation catalyst takes alumina as carrier, carries nickel as active components and promoter . The catalyst has excellent crushing strength and lower loss on attrition and outstanding low-temperature reaction active. It also has very good thermal stability. The life of the product is longer than the similar products 30%, more than 5 years. We can provide the catalyst in pre-reduced state or oxidation state.

Application: it is mainly used  for hydrogenation into methane from carbon monoxide and carbon dioxide in affluents ,such as  mixed gases  of  hydrogen-nitrogen  in synthetic ammonia process or hydrogen-rich gases. The product has been successfully used in several  industrial units  at home and abroad.

Physical and chemical properties:

Index name

HTJ103-H

Appearance

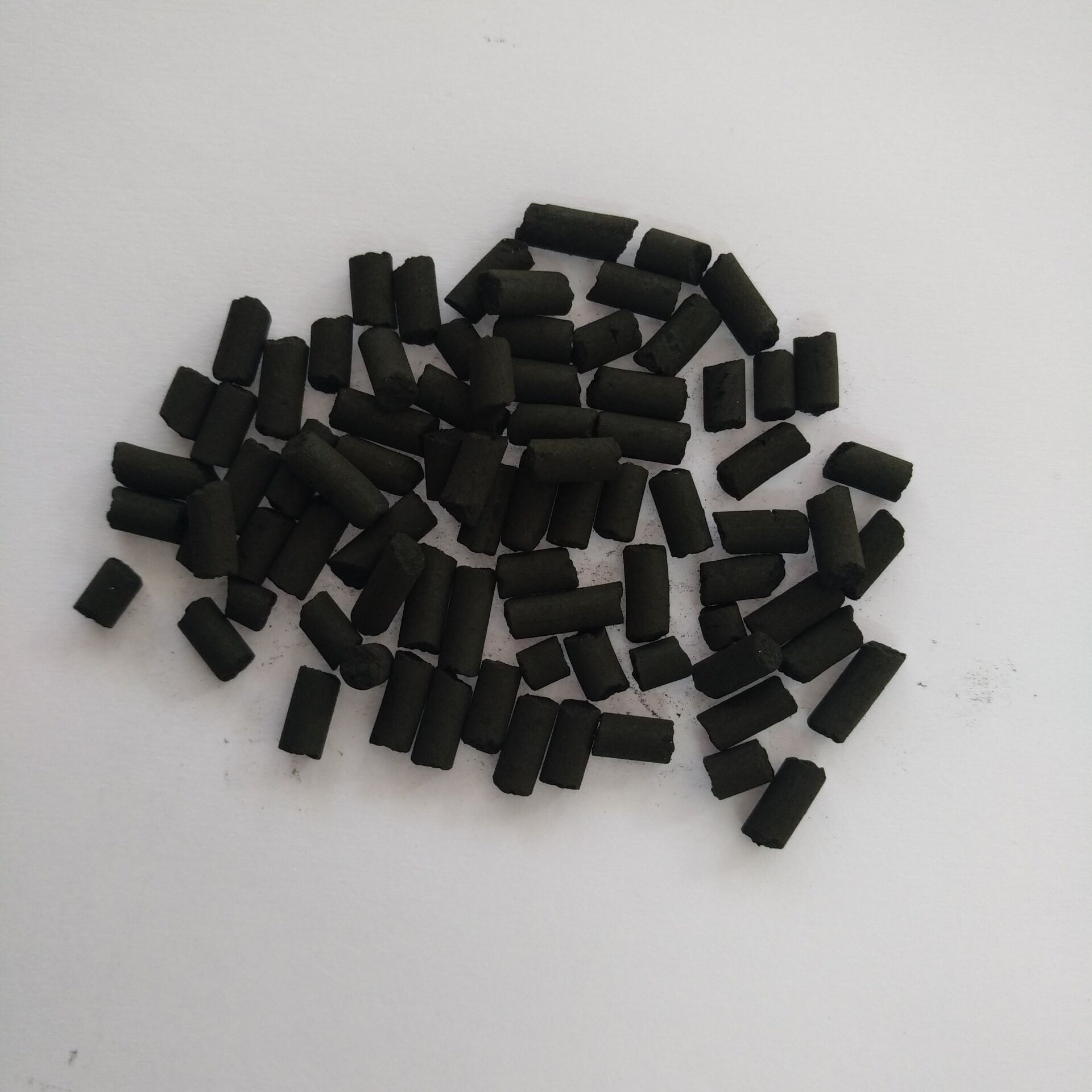

Black extrudates

Particle size , mm

∮(5–6)×(5–20)

Crushing strength ,N/particle   ≥

150

Bulk Density,kg/L

0.80 –0.90

Nickel (Ni) content,%    ≥

18

Loss on attrition,wt%

5max

Catalytic activity

0.05NL CH4/h/g Catalyst


Reference operating conditions:

Process conditions

Pressure, Mpa

Temperature,℃

Space velocity,hr-1

3.0

250-300

7000-10000

raw material

CO2 -1.2%; 3:1 hydrogen-nitrogen, balance

Products

CO2+CO,10ppm(max).

Package: iron drum innerling plastic bags, net weight 40Kg.
