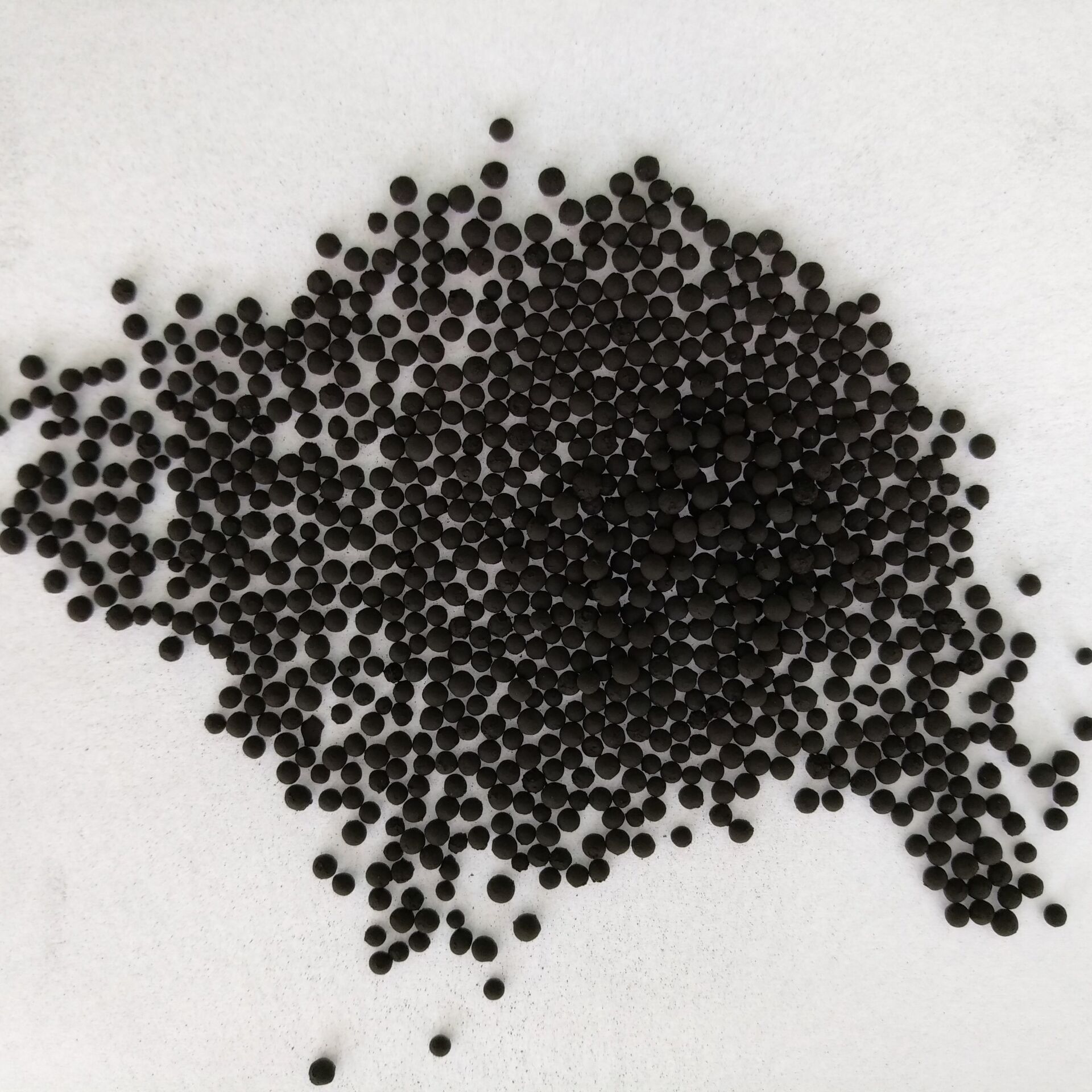

CC-00060 methanation catalyst takes alumina as carrier, carries nickel as active components and promoter . The catalyst has excellent crushing strength and lower loss on attrition and outstanding low-temperature reaction active.It also has very good thermal stability. The life of the product is longer than the similar products 30%, more than 5 years . we can provide the catalyst in pre-reduced state or oxidation state.
Application: it is mainly used for hydrogenation into methane from carbon monoxide and carbon dioxide in affluents ,such as mixed gases of hydrogen-nitrogen in synthetic ammonia process or hydrogen-rich gases. The product has been successfully used in several industrial units at home and abroad.
Physical and chemical properties:
| Index name | HTJ-103SH |
Appearance | spheres |
Particle size , mm | ∮3-5 |
crushing strength ,N/particle ≥ | 80N/particle |
Bulk Density，kg/L | 0.75--0.85 |
Nickel (Ni) content，% ≥ | 18 |
Loss on attrition，wt% | 3max |
Catalytic activity | 0.05NL CH4/h/g Catalyst |
Reference operating conditions:
Process conditions | Pressure, Mpa | Temperature，℃ | Space velocity，hr-1 |
3.0 | 250-300 | 7000-10000 | |
raw material | CO2 -1.2%; 3:1 hydrogen-nitrogen,balance | ||
Products | CO2+CO ,10ppm(max). | ||
Package: iron drum innerling plastic bags, net weight 40Kg.
