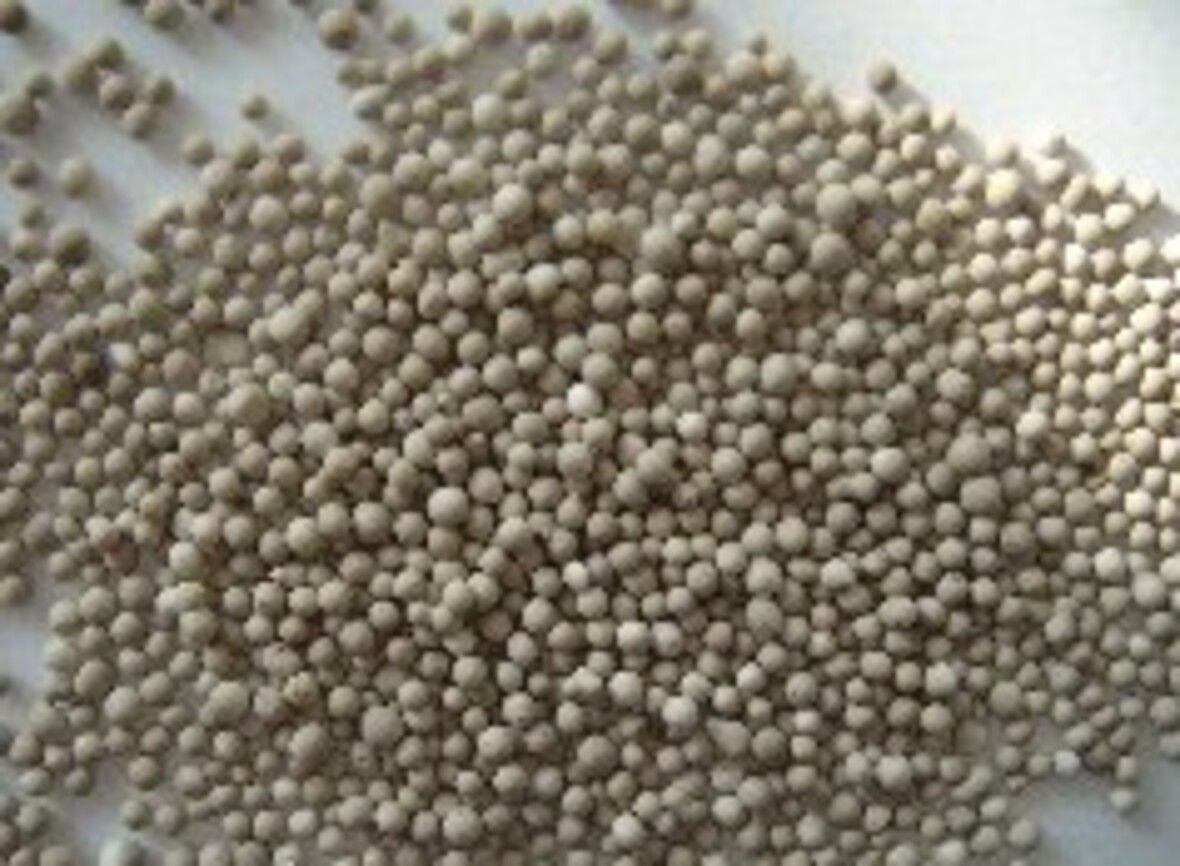

Butane Dehydrogenation Catalyst
CC-00026 butane dehydrogenation catalyst is a newly developed high efficient catalyst used for isobutane dehydrogenation to produce isobutene. The isobutane conversion and isobutene selectivity can reach a high index in moderate conditions. The main physical and chemical properties and the performance of reaction are shown in the table 1 and table 2.
Physical and Chemical Properties
| Item | Index |
Pt m% | 0.6±0.1 |
Cl m% | 2.0±0.5 |
Pore volume ml/g | 0.4～0.6 |
Surface area m2/g | 170～210 |
Appearance | Sphere |
Size mm | Ф1.59(1/16inch) |
Bulk density g/cm3 | 0.55～0.65 |
Crushing strength N/particle | ≮30 |
Process condition
Raw material | Isobutane |
Space velocity hr-1 | 1.5～3.0 |
Pressure Mpa | 0.04～0.1 (0.4～1.0 Bar) |
Temperature ℃ | 590～650 |
Isobutane conversion % | 45～60 |
Isobutene selectivity % | 91～96 |
Isbutene yield % | ≮44.5 |
