Isopropylamine Synthesis catalyst
Isopropylamine Synthesis catalyst
Other grades of this product :

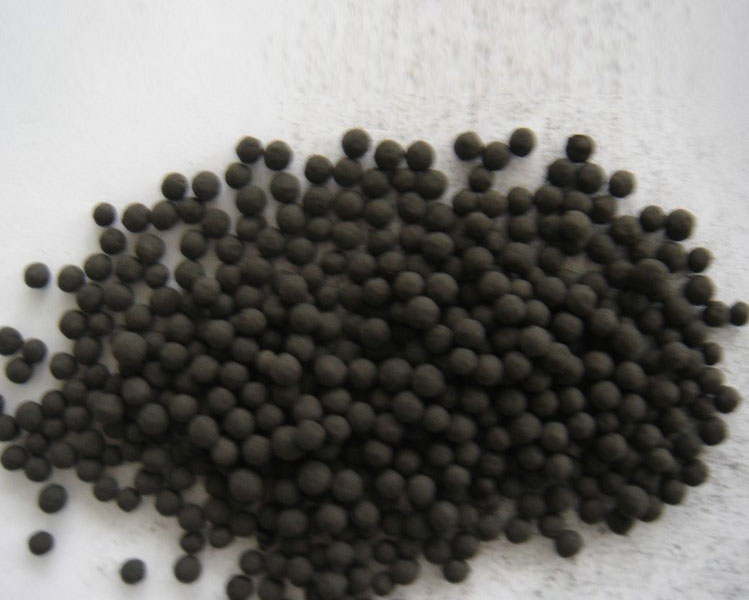

Isopropylamine is a useful organic synthesis intermediates. ,liquid ammonia and hydrogen as feed used to synthetise isopropylamine process. The catalyst can be made black sphere,cylinder or trilope extrudates according to customers’requirements. The catalyst possesses the characteristices of steady performance, high conversion,good selectivity. The catalyst consumption is about 0.4-0.5 kgs per ton with conversion 99% (min) and selectivity  98% (min). The reaction principle as follows

CH3COCH3 + NH3 + H2  →  CH3CHCH3  +  H2O

       NH2



i.Physical and chemical properties:


                        Item

                        index

                        Appearance

                        Black sphere

                        Particle size,mm

                        ∮3-4

                        Active components

                        Ni+promoter

                        Crushing strenght,N/particle    ≥

                        80

                        Bulk density,kg/L

                        0.78-0.88

ii. Operating conditions:




Operating conditions

Temperature,℃

pressure,MPa

Acetone space velocity( V) , hr-1

Acetone:ammonia:Hydrogen (mol)

150

1.0

0.5

1:3:3

Conversion rate

≥99%

selectivity

≥98%
